Notes on Jax

Notes for my revision, covers

• https://docs.jax.dev/en/latest/notebooks/thinking_in_jax.html
• https://docs.jax.dev/en/latest/key-concepts.html Future work
• https://docs.jax.dev/en/latest/tutorials.html

Some primer

• import jax.numpy as jnp Vs import numpy as np, computations are done using numpy like interface, same code can run on cpu, gpu, tpu and local and distributed too.
• just-in-time compilation via Open XLA.
  • In general jax operations happen one at a time
  • jax.jit decorator allows bunch of code to be optimized and run at once
• gradients can be calculated for JAX functions using automatic differentiation transformation.
• JAX functions can be automatically vectorised, ie, mapping over batch of inputs.

Tip

Use duck typing to replace jax arrays with numpy arrays, but jax arrays are immutable.

JAX arrays

• provided by jax.Array, but mostly created using jnp API.
• if x: jax.Array; x.devices() and x.sharding allows us to inspect location and sharding.

import jax.numpy as jnp

def norm(X):
	X = X - X.mean(0)
	return X / X.std(0)

from jax import jit
# can be considered as norm_compiled.
jit_norm = jit(norm)

np.random.seed(0)
X = jnp.array(np.random.rand(1000, 10))
np.allclose(norm(X), jit_norm(X), atol=1E-6)

%timeit norm(X).block_until_ready()
%timeit jit_norm(X).block_until_ready()

JAX uses asynchronous dispatch so we need to use block_until_ready.

JAX.JIT LIMITATION

1. all arrays should have static shapes

def get_negatives(x):
  return x[ x < 0 ]
x = jnp.array(np.random.randn(10))
# ERROR
get_negatives(x)
jit(get_negatives(x)) # will give an error

tracing and static variables

• JIT and JAX transforms work by tracing a function
  • helps determine how function effect on inputs of specific shape and type.
  • static variables won’t be traced.

@jit
def f(x, y):
	print("Running f():")
	print(f" {x= }")
	print(f" {y= }")
	result = jnp.dot(x+1, y+1)
	print(f" {result= }")
	return result
x = np.random.randn(3, 4)
y = np.random.randn(4)

Running f():
	x = JitTracer<float32[3,4]
	y = JitTracer<float32[4]
	result = JitTracer<float32[3]>

Array([0.25773212, 5.3623195 , 5.403243  ], dtype=float32)

• tracer objects are used to extract sequence of operations, encoded in jaxpr (JAX expression)
• tracer knows only dtype and shape of arrays.
• for matching inputs no re-compilation is required.

from jax import make_jaxpr

def f(x, y):
	return jnp.dot( x+1, y+1 )

make_jaxpr(f)(x, y)

OUTPUT

{ lambda ; a:f32[3,4] b:f32[4]. let
    c:f32[3,4] = add a 1.0:f32[]
    d:f32[4] = add b 1.0:f32[]
    e:f32[3] = dot_general[
      dimension_numbers=(([1], [0]), ([], []))
      preferred_element_type=float32
    ] c d
  in (e,) }

JIT cannot be used on control flow statements, static variables help us here.

@jit
def f(x, neg):
	return -x if neg else x

f(1, True)

TracerBoolConversionError: Attempted boolean conversion of traced array with shape bool[].
The error occurred while tracing the function f at /tmp/ipykernel_4292/2422663986.py:1 for jit. This concrete value was not available in Python because it depends on the value of the argument neg.
See https://docs.jax.dev/en/latest/errors.html#jax.errors.TracerBoolConversionError

from functools import partial

@partial(jit, static_argnums=(1,))
def f(x, neg):
	return -x if neg else x

f(1, True)


Array(-1, dtype=int32, weak_type=True)

If we change the static arguments then recompilation will happen.

Derivatives with jax.grad

• jax.grad transformation is used for automatic differentiation
• jax.jacobian transformation is used to compute full jacobian matrix for vector-valued functions.

Jacobian vs Grad

1. jacobian is for vector valued functions, whereas, grad is for scalar valued functions.
2. jacobian is matrix, where as grad is vector

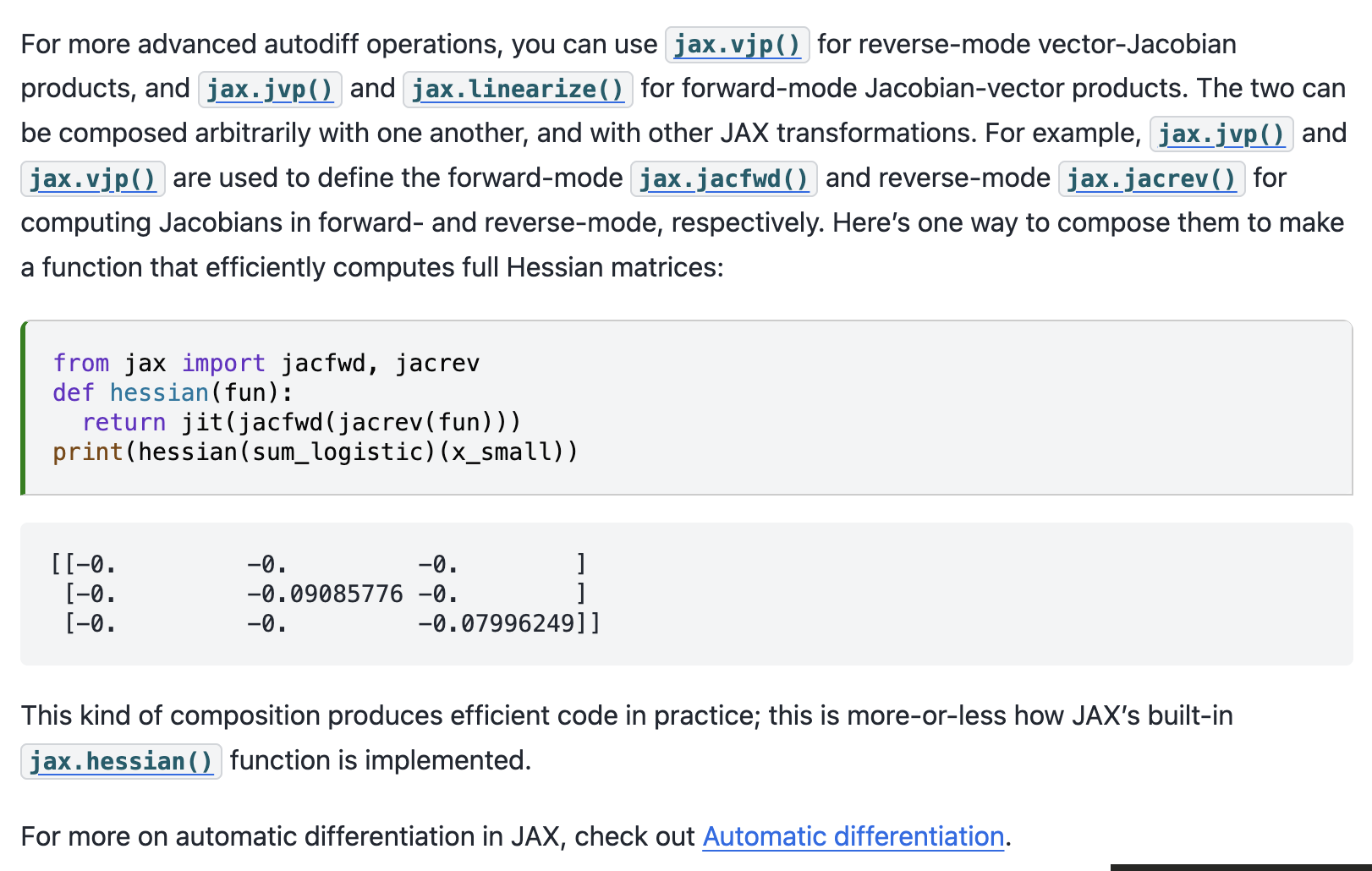

REVISIT THIS PART LATER

• No proper knowledge of hessian, jacobian vector product and vector jacobian product.

Tip

multiple transformations can be composed grad(jit(grad(f)))(x)

Auto-vectorization with jax.vmap()

• jax.vmap provides automatic vectorization transformation.
• matrix-vector to matrix-matrix multiplication

from jax import random

key = random.key(1)
key1, key2 = random.split(key)
mat = random.normal(key1, (150, 100))
batched_x = random.normal(key2, (10, 100))

def apply_matrix(x):
	return jnp.dot(mat, x)

def natively_batched_apply_matrix(v_batched):
	return jnp.stack([apply_matrix(v) for v in v_batched])

def batched_apply_matrix(batched_x):
	return jnp.dot(batched_x, mat.T)

from jax import numpy

@jit
def vmap_batched_apply_matrix(batched_x):
	return vmap(apply_matrix)(batched_x)

Pseudorandom numbers

• JAX random functions consume a random key that must be split to generate new independent keys.
• JAX random key model is thread-safe and avoids issues with global state. [dig deeper]
  • numpy uses global state, set using numpy.random.seed
  • issue: global state won’t work with JAX computation model, reproducibility over different threads, processes and devices.
  • solution: track the state explicitly using random key.

The rule of thumb

never reuse keys (unless we want identical outputs).

for i in range(3):
	new_key, subkey = random.split(key)
	del key # consumed by split.

	val = random.normal(subkey)
	del subkey # consumed by normal.

	key = new_key # new_key is safe to use in next_iteration.

np vs jnp & static vs traced

use numpy for operations that should be static (i.e. done at compile time) and use jax.numpy for operations that should be traced.

Jaxpr

• jax uses tracer to extract operations performed in a function, which are stored in jaxpr syntax.
• jax.make_jaxpr

Pytrees

• JAX functions and transformation fundamentally operate on single array.
• But in practice we encounter collection of arrays, like neural network.
• JAX relies on Pytree abstraction to treat such collections in uniform manner.

(nested) list of params

params = [1, 2 (jnp.arange(3), jnp.ones(2))]

print(jax.tree.structure(params))
print(jax.tree.leaves(params))

# PyTreeDef([*, *, (*, *)])
# [1, 2, Array([0, 1, 2], dtype=int32), Array([1., 1.], dtype=float32)]

Dictionary of params

params = {'n': 5, 'W': jnp.ones((2, 2)), 'b': jnp.zeros(2)}

print(jax.tree.structure(params))
print(jax.tree.leaves(params))
# PyTreeDef({'W': *, 'b': *, 'n': *})
# [Array([[1., 1.],
#        [1., 1.]], dtype=float32), Array([0., 0.], dtype=float32), 5]

Named tuple of parameters

from typing import NamedTuple

class Params(NamedTuple):
	a: int
	b: float

params = Params(1, 5.0)
print(jax.tree.structure(params))
print(jax.tree.leaves(params))
# PyTreeDef(CustomNode(namedtuple[Params], [*, *]))
# [1, 5.0]

General purpose utilities for working with PyTrees

• jax.tree.map function is used to map a function to every leaf in a tree.
• jax.tree.reduce function is used to apply reduction across leaves in a tree.

JAX API layering: jax.numpy → jax.lax → XLA

Core concepts

• Just-in-time compilation
• Automatic vectorisation
• Automatic differentiation
• Debugging
• Pseudorandom numbers
• Pytrees
• Parallel programming
• Stateful computations
• Control flow and logical operators with JIT
• Advanced concepts
  • Advanced automatic differentiation
  • External callbacks
  • Gradient checkpointing
  • Jax Internals
    • Primitives
    • The jaxpr language

Just-in-time Compilation
